PM 4521 | PM 4522 | PM 4523 | PM 4524 | |
|---|---|---|---|---|
| Spec Sheet | ||||
| Spec Sheet | - | - | - | - |
| Max. Pressure | - | - | - | - |
| Fuel Tank Capacity | - | - | - | - |
| Max. Lifting Moment | 30070 ft Ibs | 29290 ft Ibs | 27020 ft Ibs | 25510 ft Ibs |
| Hydraulic Horizontal Outreach | 16′ 5” | 20′ 12” | 24′ 11” | 29′ 0” |
| Hydraulic Vertical Outreach | 25′ 7” | 30′ 0” | 34′ 1” | 38′ 3” |
| Recommended oil flow | - | - | - | - |
| Slewing torque | - | - | - | - |
| Stabilizer Spread available | - | - | - | - |
| Slewing angle | 360° | 360° | 360° | 360° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual |
| Width | 2′ | 2′ | 2′ | 2′ |
| Height | 6′ | 6′ | 6′ | 6′ |
| Length | 6′ 8″ | 6′ 8″ | 6′ 10″ | 7′ 1″ |
Standard
Standard
Standard
Standard
Optional
Optional
Optional
Optional
Optional
Optional
Standard

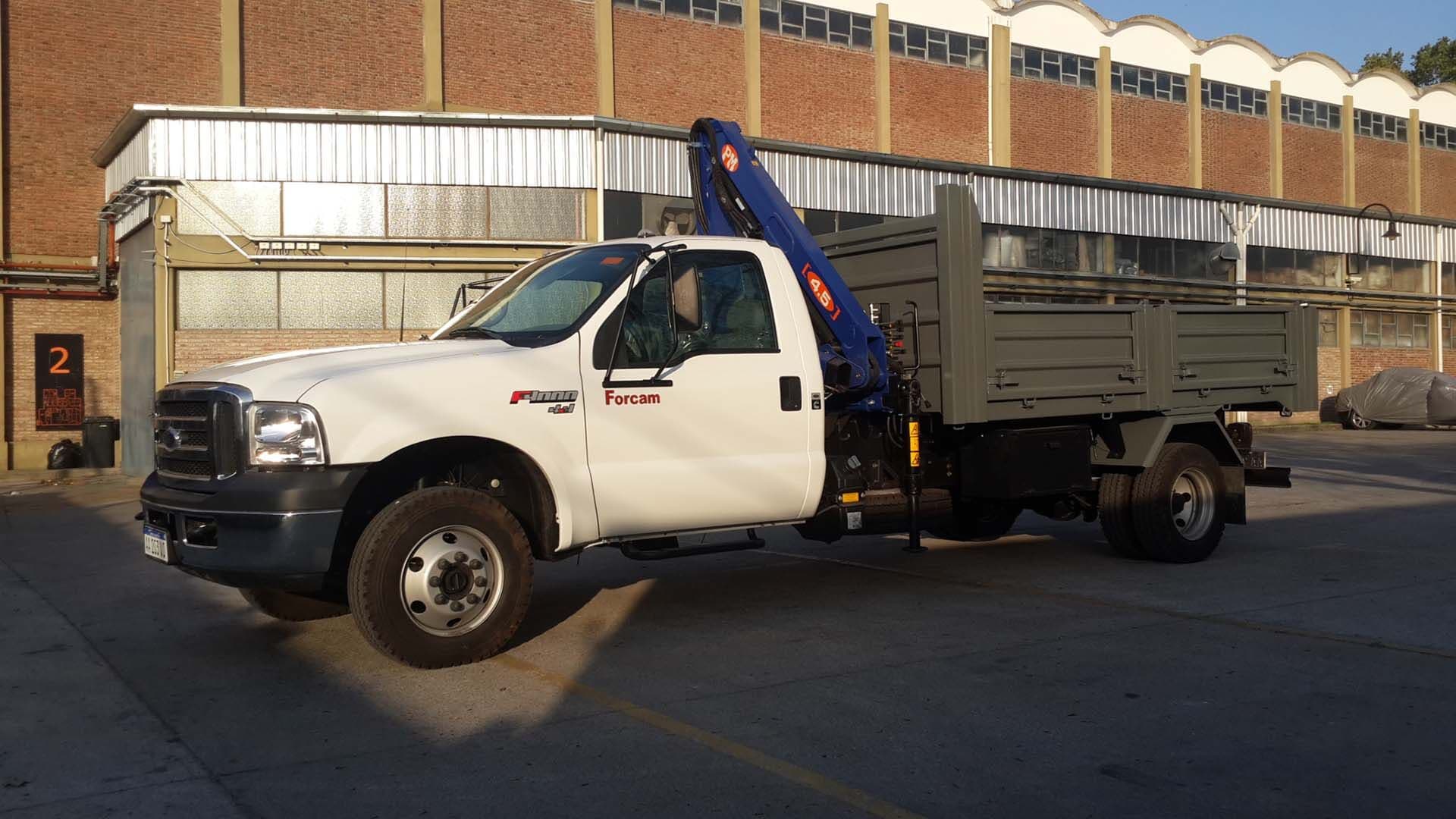

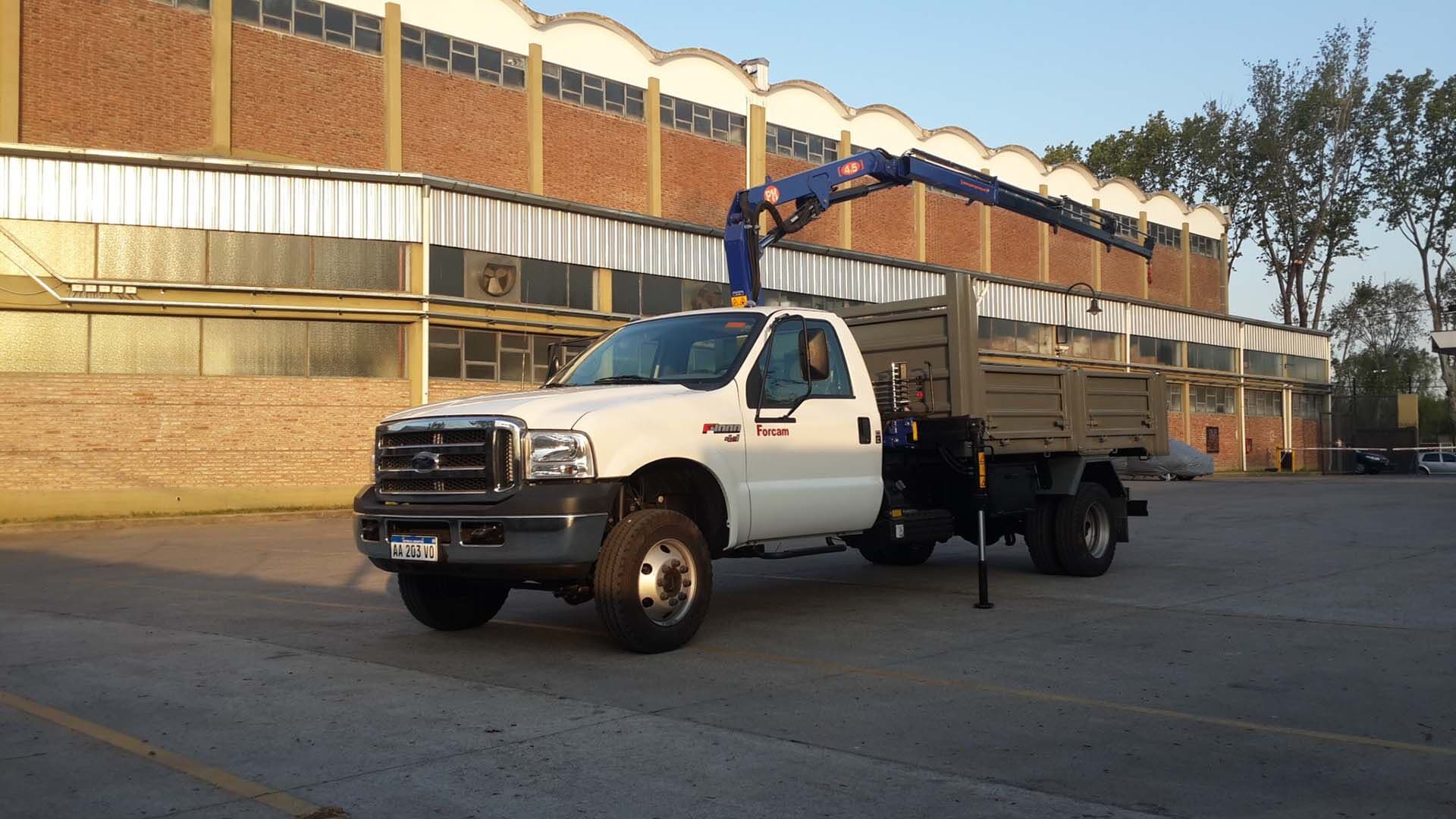

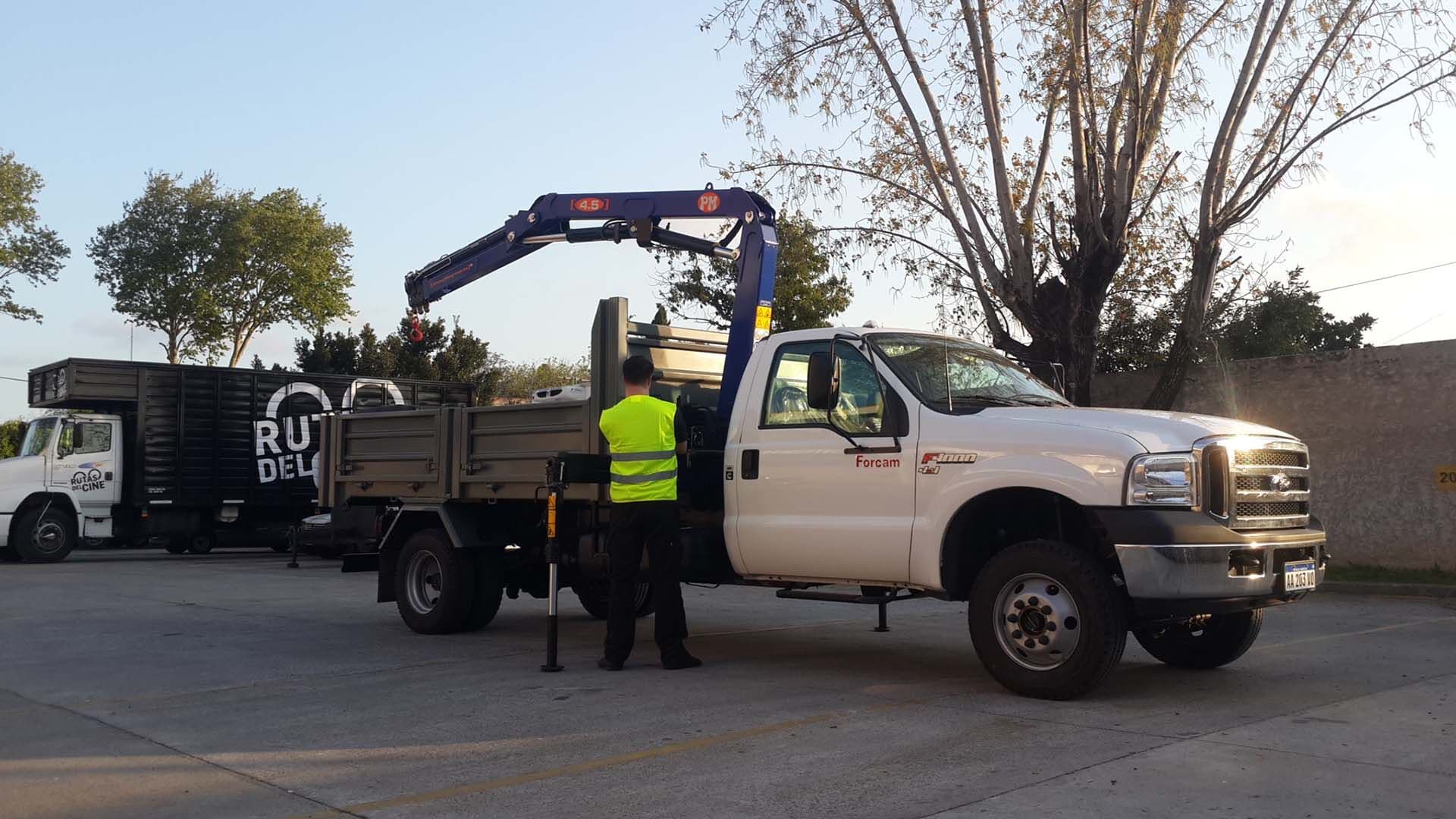

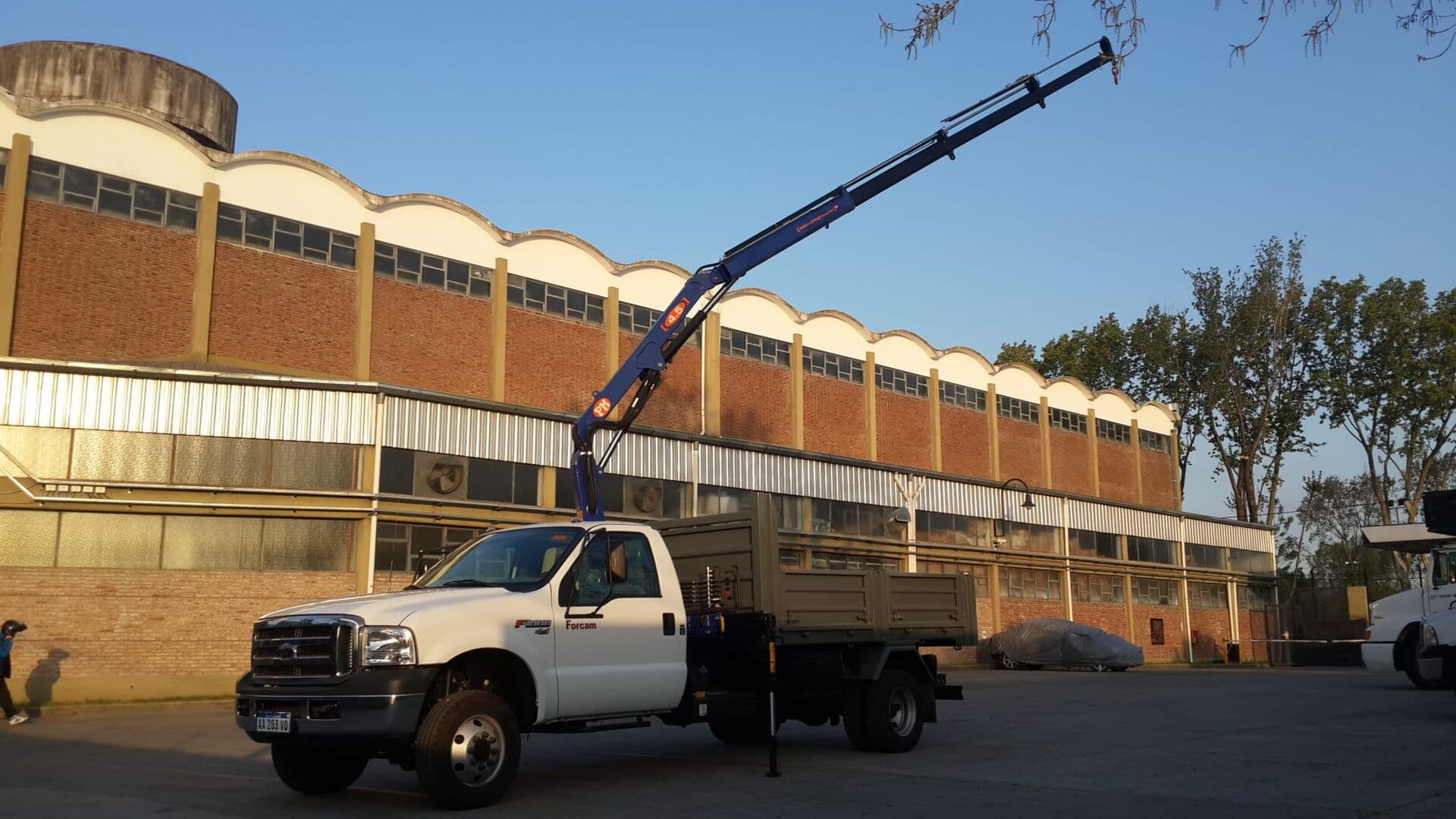

Knuckle Boom Cranes (PM Series) - (Tadano)
Descriptions
The PM 4.5 Series combines extended outreach, safety-focused design, and reliable performance—perfect for versatile lifting operations on light and medium vehicles. Reach further, lift smarter.
Contact for Pricing
Contact for availability
Max Cap
2
Boom
4,70 m - 6,10 m
Jib
7,50 m - 8,80 m
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
4,70 m - 6,10 m
Jib
7,50 m - 8,80 m
Total Hrs
New
Request Pricing
Contact for availability
Max Cap
3
Boom
4,90 m - 6,30 m
Jib
7,70 m - 9,00 m
Total Hrs
New
